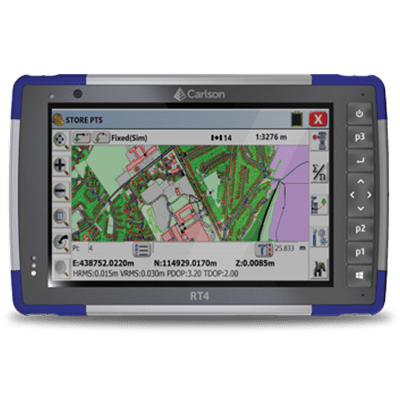

Carlson RT4 Tablet Data Collector

$4,050.00$5,050.00

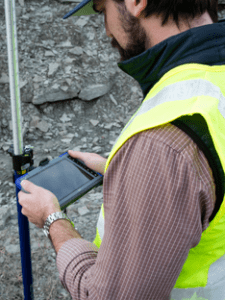

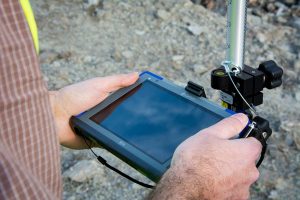

The Carlson RT4 is designed for surveying, stake out, construction layout and GIS mapping and is bundled with Carlson SurvPC – the Windows-based data collection program – with the option of running with the Esri® OEM program for use in the field. Or use in the office with any Carlson office software. Along with the 8GB of RAM and 128GB of storage, you can collect and analyze your data quicker than ever before.

See Available Discounts in Cart

Add Additional Software:

Add Accessories:

Quantity:
SKU: N/A Category:

Description

Physical

Size: 5.40″W x 8.48″L x 1.36″D (137 x 215 x 35mm)
Weight: 1.5-2 pounds (680–907 g) depending on battery configuration
Lightweight and ergonomic design Durable, chemical- and shock-resistant design
Easy-to-grip, impact-absorbing, overmolded bumpers

Durability: Juniper™ Rugged

IP68 waterproof and dust-proof
Operating temperature: -4 F to 122 F (-20 C to 50 C)
Storage temperature: -22 F to 158 F (-30 C to 70 C)
Shockproof: multiple drops from 4′ (1.2 –1.5 m) onto concrete
Designed for MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock

Display

Active viewing area: 7″ (178 mm)
Resolution: WXGA (1280 x 800)
High-visibility backlit LCD for best-in-class sunlight view-ability
Portrait or landscape orientation with automatic screen rotation

Ports

USB3.0x1
3.5 mm audio jack
12 VDC power input jack
Docking port connections (Pwr, USB 2.0, & HDMI)
Loud output speaker for noisy environments
Dual digital microphone input for improved clarity
Optional RS-232 9-Pin D-Sub connector with 5VDC power output

Keyboard and Input

Adjustable LED backlit keys
Four-way directional navpad
Windows/home key
Power key
Enter key
Three user-programmable function keys
OEM configurable/customizable

Cameras (GEO Models)

720p webcam with mic
8MP rear camera with LED illumination
Juniper GeotaggingTM: embed photo with date, time, and GNSS position

Wireless

Long-range Bluetooth® Smart Ready wireless technology, v5.0 +EDR, Class 1.5, BLE support
Wi-Fi® 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
4G LTE, support for GSM or Verizon Networks

GPS/GNSS (GEO Models)

2 to 5 meter typical accuracy
uBlox NEO-M8N GNSS receiver and integrated antenna
Integrated real-time SBAS receiver (WAAS, EGNOS, etc.)
72 GNSS tracking channels
Optional: uBlox NEO-M8T w/post-processing capability and external GNSS antenna pass- through connection for sub-meter accuracy

Accessories

Standard removable battery
AC wall charger with international plug kit
Capacitive small-tip stylus w/tether
Quick Start Guide
Hand strap
Connector port dust cover

Additional information

Weight 8 lbs
Dimensions 19 × 15 × 8 in

Model Comparison

RT4 BASE CELL GEO/CELL
IP68 RATING – WATER & DUST PROOF Checkmark Checkmark Checkmark
7″ DRAGONTRAIL GLASS SCREEN Checkmark Checkmark Checkmark
ILLUMIVIEW TECHNOLOGY – HIGH VISIBILITY SCREEN Checkmark Checkmark Checkmark
CLASS 1.5 LONG RANGE BLUETOOTH, SMART READY Checkmark Checkmark Checkmark
WIFI Checkmark Checkmark Checkmark
8 GB RAM Checkmark Checkmark Checkmark
128 GB FLASH STORAGE Checkmark Checkmark Checkmark
15 HR BATTERY Checkmark Checkmark Checkmark
8 MP FRONT CAMERA, 2MP REAR CAMERA Checkmark Checkmark Checkmark
EXPANDABLE SD STORAGE (UP TO 1 TERRABITE) Checkmark Checkmark Checkmark
USB 3.0 Checkmark Checkmark Checkmark
4G LTE CELLULAR (AT&T OR VERIZON) Checkmark Checkmark
INTEGRATED GPS/GNSS – UBLOX M8TN -72 CHANNEL Checkmark

Documentation

Carlson RT4 Tablet Data Collector Brochure

Processing/Power

Software

Microsoft Windows® 10
Multiple languages supported (English, French, Spanish, Portuguese and German)

CPU

Quad-core Intel® PentiumTM N4200 Processor
Intel® HD Graphics

Storage and Memory

8GB RAM (LPDDR4)
128GB flash storage
User-accessible MicroSDXC card slot

Power Supply

Removable Li-Ion batter, 43.2 Whr
Operates 12-15 hours on one charge
Optimized for strong performance in cold temperatures
Removable battery is easily changed in the field

Warranty

2-year limited warranty, parts and labor

Videos

Repairs

For repairs, please contact: Carlson Software 102 West Second Street Maysville, KY, USA, 41056 1-606-564-5028 1-800-989-5028
