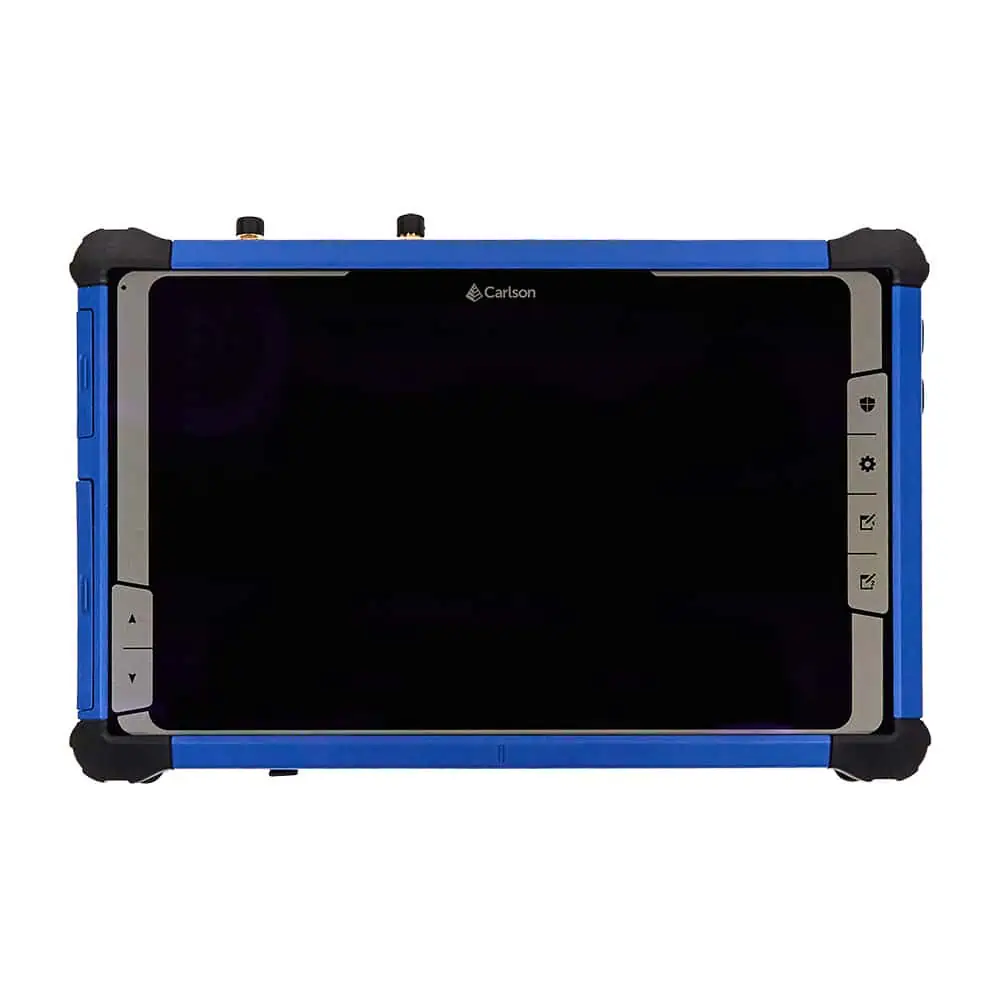

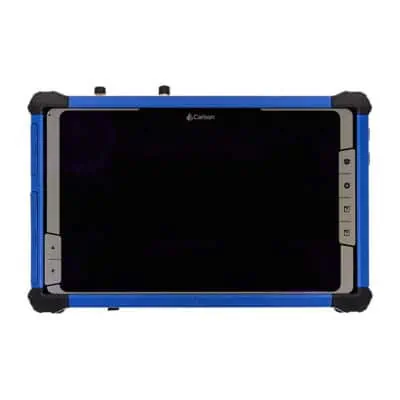

Carlson RT5+ Rugged Tablet Data Collector
Price range: $5,150.00 through $5,400.00

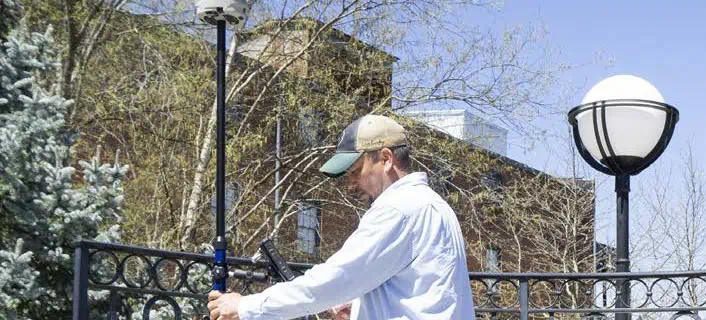

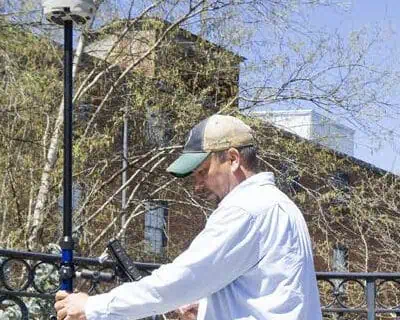

The Carlson RT5+ is a ruggedized Windows data collector designed for surveying, stake-out, construction layout and GIS mapping, and is bundled with Carlson SurvPC – the Windows based data collection program. Optionally, the RT5+ can run SurvPC with esri OEM for use in the field. With 16GB of RAM, 512 GB of storage, you can collect and analyze your data quicker than ever before.
See Available Discounts in Cart
Description
PERFORMANCE
• Powerful Windows 11 for office-to-field use
• Plenty of memory – 16 GB RAM & 512 GB flash storage
EXPANDABLE BATTERY
• All-day battery runs 10+ hours for minimal downtime
• Optional 15+ hour battery
• 5-minute hot swap
CONNECTIVITY
• Long Range Bluetooth®
• Dual-band Wi-Fi®
• USB 3.0 connectivity
• 4G LTE (GSM)
FIELD-TESTED RUGGED
• Operates in extreme temperatures from 14F to 122F (-10° C to 50° C)
• Protection for your data
• Dustproof & water resistant (IP65 rating)
• Designed to MIL-STD-810G for ultra-ruggedness
• 3-year NO FAULT warranty*
HIGH-VISIBILITY DISPLAY
• Large, 8-inch display for easy viewing
• 800 nits (cd2/M) brightness provides extraordinary visibility
• Capacitive touch screen with digital pen support
*Three years of No-Fault Accidents Warranty includes repair or replacement of RT5+ or RTk5+, with coverage for ONE (1) LCD-related incident per unit, per warranty year. Battery and accessories are excluded under the warranty. Free two-way ground shipping for USA customers.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 5 × 10 in |
Tech Specs
PROCESSOR
• Intel® Core® N250 4-Core
OPERATING SYSTEM
• Microsoft® Windows 11 IoT NTSC
• Multiple languages supported (English, French, Spanish, German, Portuguese)
MEMORY AND DATA STORAGE
• 16 GB RAM
• 512 GB flash storage
• User-accessible smart card reader
GRAPHICS
• Intel® HD Graphics
DISPLAY
• Active viewing area: 8” (203 mm)
• Resolution: WXGA (1280 x 800)
• High-visibility backlit LCD for sunlight viewability
• Portrait or landscape orientation with automatic screen rotation
TOUCH SCREEN
• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
PHYSICAL KEYS
• LED backlight adjustment keys
• Windows/home key
• Power button
• 2 trigger buttons
• 4 programmable buttons
PORTS
• USB 3.0 x 1
• 3.5 mm audio jack
• USB Type-C power input jack
• Built-in speaker
BATTERY
• Removable Li-Ion battery, 5400mAh
• Operates 10+ hours on one charge
• Hot-swappable, easily changeable in field
• Optimized for strong performance in cold temperatures
• Excellent lifecycle performance
• Optional 8000mAh battery for 15+ hours of operation
PHYSICAL
• Size: 6.1 x 9.4 x 1.3 in (155 x 238 x 33 mm)
• Tablet Weight: 2.58 lbs (1.17 kg)
• Complete setup on pole: 6 lbs (2.72 kg)
• Durable, shock-resistant design
• Easy-to-grip, impact-absorbing, overmolded bumpers
• Lightweight and ergonomic design
WIRELESS CONNECTIVITY
• Long Range Bluetooth® (tested to 1,500’/450 m)
• Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
• 4G LTE (GSM)
CAMERA
• 8 MP rear mounted
OTHER FEATURES
• TPM (Trusted Platform Module) v2.0
CERTIFICATIONS AND STANDARDS
• IEC 62368-1
• FCC Class B
• CE Marking (applicable EMC, R&TTE, and LVD directives)
• RoHS Compliant
• Industry Canada
• HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
FIELD-TESTED RUGGED
• IP65 for dust and water resistance
• Operating Temperature: 14 F to 122 F (10° C to 50° C)
• Storage temperature: -4 F to 140 F (-20° C to 60° C)
• MIL-STD-810G for shock and vibration protection
WARRANTY
• 3-yearNO FAULT warranty*
• Service plans available
STANDARD ACCESSORIES
• Antennas: Survey grade (RTk5+), Helix/GIS (RTk5+), and LR Bluetooth
• Custom survey pole (RTk5+)
• Custom cradle with pole mount & 1” ram arm
• Standard removable battery
• AC wall charger
• Quick Start Guide
• Hand strap
*Three years of No-Fault Accidents Warranty includes repair or replacement of RT5+ or RTk5+, with coverage for ONE (1) LCD-related incident per unit, per warranty year. Battery and accessories are excluded under the warranty. Free two-way ground shipping for USA customers.
