Carlson Survey GNSS

$1,800.00

SurveyGNSS post-processing software is a reliable and precise tool for all post-processing applications and is tightly integrated into the Carlson field and office workflow.

See Available Discounts in Cart

Options

Quantity:
Category:

Description

SurveyGNSS post-processing software is a reliable and precise tool for all post-processing applications and is tightly integrated into the Carlson field and office workflow. In keeping with the Carlson hallmark of interoperability with the greatest amount of GNSS hardware, SurveyGNSS is designed to accept GNSS data from any receiver in RINEX format. Furthermore, it will also accept proprietary GNSS data in an increasing number of manufacturer formats including NovAtel, Hemisphere GNSS, Altus/Septentrio, and Javad. Additional manufacturer formats will be added in concert with manufacturer cooperation and customer demand.

Carlson SurveyGNSS is developed in partnership with WaSoft of Dresden, Germany, and its proven line of GNSS software technologies.

All Carlson Software purchases will be delivered by email with your new serial number and download instructions within two business days.

Features

Get the most out of your GNSS Data

For  surveyors and positioning professionals looking to achieve centimeter accuracy when working on the edge of their RTK infrastructure, perform sub-centimeter positioning, and/or provide the highest quality assurance to their customers, Carlson Software has developed the all new Carlson SurveyGNSS post-processing program.

Highlights in Carlson SurveyGNSS version 2.1.0:

  • SurveyGNSS now supports project templates. Users no longer have to select their coordinate system everytime SurveyGNSS is started, but can simply load a template file. The project template includes the coordinate system and any other SurveyGNSS project data.
  • SurveyGNSS now supports projection factors. This allows for ‘grid to ground’ computations. The GNSS-derived positions in SurveyGNSS are scaled to localized “ground” coordinates so that any inverse between them results in an approximate ‘Ground Distance’. These scaled distances can then be combined with Total Station observations.
  • SurveyGNSS now supports projection localization. A four parameter (scale, rotation, shift) 2D similarity transformation to projected coordinates can be defined using corresponding positions. This results in localized horizontal E,N coordinates.
  • SurveyGNSS now supports online geoid models. When online, users may select a geoid model directly from the geoids library published by Carlson. Geoid support has also been extended to the (textual) “.asc” format offered by the US National Geodetic Survey.
  • SurveyGNSS now supports antenna height input in Meters for projects with a coordinate system in Feet. This makes it easier to enter a typical 2 Meter antenna height while the rest of the data is in Feet.

Complete Carlson SurveyGNSS 2016 v 210 Release Notes

Highlights in Carlson SurveyGNSS version 2.0.1:

  • SurveyGNSS now also works offline. Typical online functionality (downloading reference station data,
    background map) will not be available. Vector processing is available, as well as GNSS Resection(s) and
    Virtual Reference Station(s).
  • Virtual Reference Station(s) now also work with static data and not just with Stop&Go data.
    SurveyGNSS will calculate a virtual station close to the rover position, providing that proper CORS
    reference data is available. This results in a shorter baseline and shorter baselines means shorter
    observation times.
  • The SurveyGNSS Network Adjustment now exports .GPS vector files for processing in Carlson SurvNet.
    This makes it possible to combine SurveyGNSS vectors with Total Station and leveling data in a single
    least squares adjustment.

Highlights in Carlson SurveyGNSS version 1.0.4:

  • More receiver raw data formats are supported. The list of supported formats for import is now: RINEX, Carlson, Hemisphere, Javad, Leica, NVS, Novatel, Sokkia, Topcon, Trimble and ublox.
  • Command line RINEX utility: prospective users now have the ability to incorporate their own (proprietary) command line RINEX utilities directly into the product to support almost any GNSS manufacturer.
  • Improved Positions and Map symbolization: SurveyGNSS now includes improved graphics with redesigned solution symbols and stop&go trajectory views.
  • Seamless integration with SurvCE 4.0 RW5 files for raw data logging.
  • Support for the Carlson BRx5. Full support of the new Carlson BRx5 receiver including Glonass inter-channel biases for an even more accurate solution.
  • Support for underlying system configured proxies providing indirect public HTTP, FTP and ICMP communication protocols.
  • Improved GNSS L1-only processing performance.
  • New languages added: French, Hungarian, Spanish, Russian.

Standard Features:

  • Supports differential post-processing of RINEX GNSS observations in static, ‘stop and go’ and kinematic positioning modes
  • Accepts GNSS observations from any GNSS receiver in RINEX format
  • Accepts proprietary GNSS observations in the following formats:
      • Carlson .log and .rw5
      • NovAtel .log
      • Hemisphere GNSS .bin
      • Altus .sbf
      • Javad .bin
      • Additional proprietary manufacturer file formats will be added based on manufacturer cooperation and/or customer demand
  • Provides a straightforward, workflow-oriented user interface including an overview map and observation files, computed vectors, and positions presented in fully functional spreadsheet like grids
  • Incorporates a proven state of the science, highly autonomous baseline processor offering on the fly ambiguity resolution, automated cycle slip detection/removal, and more for baselines up to 200km (125mi)
  • Automated search and retrieval of reference geodetic control and GNSS observations from organizations such as the US National Geodetic Survey and Continuously Operating Reference Station (CORS) networks
  • Rigorous least squares adjustment of all computed vectors
  • Seamless integration with downstream applications from Carlson and other vendors

Ready for the Future

  • Support of Galileo, Bediou, and Juntencho signals as soon as these become commercially available

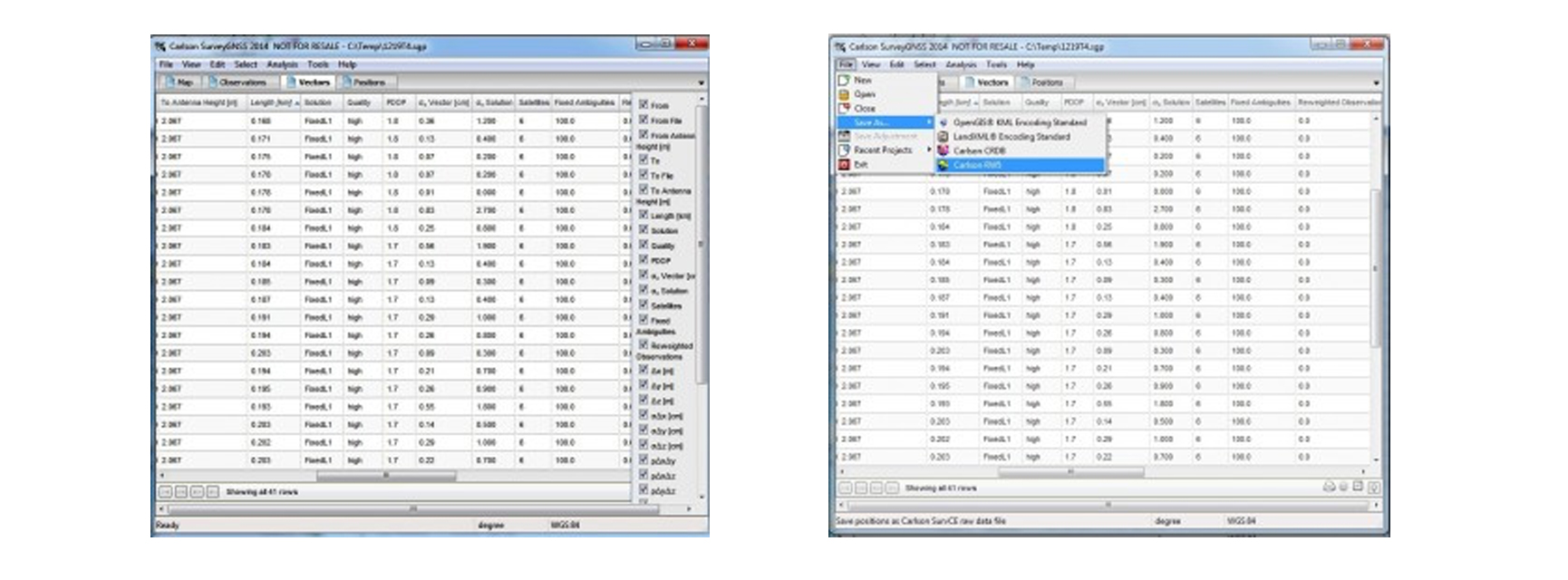

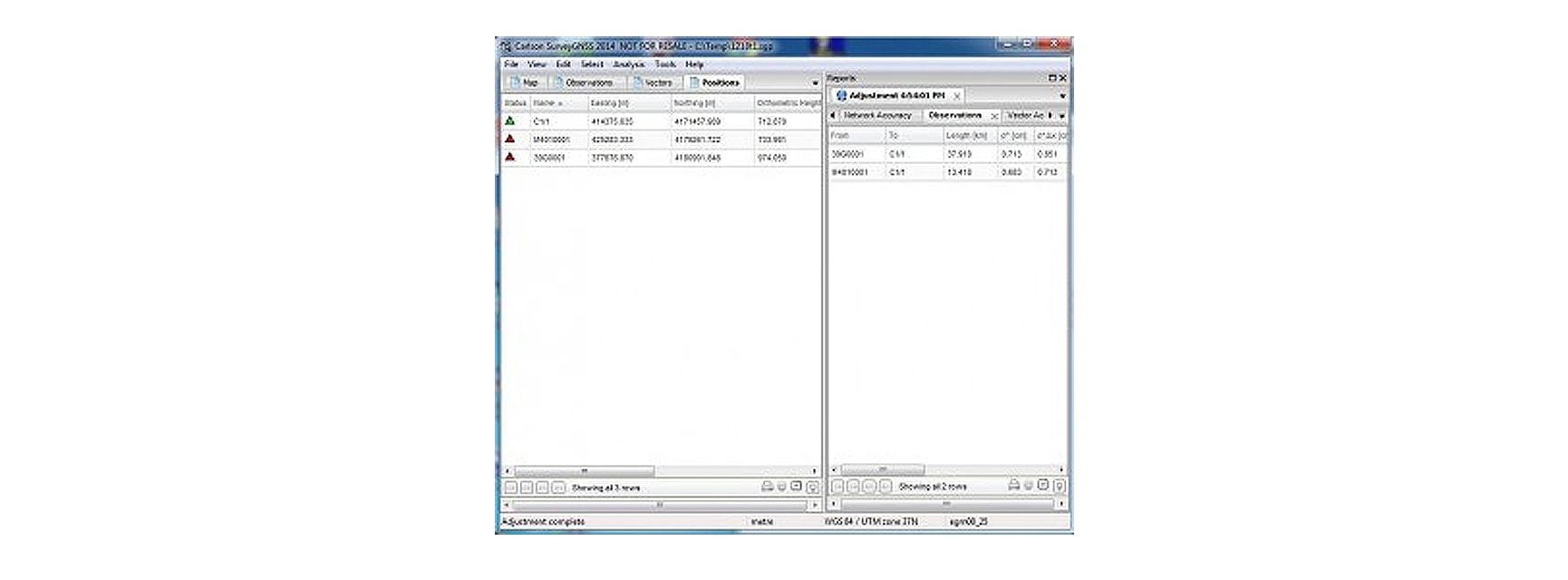

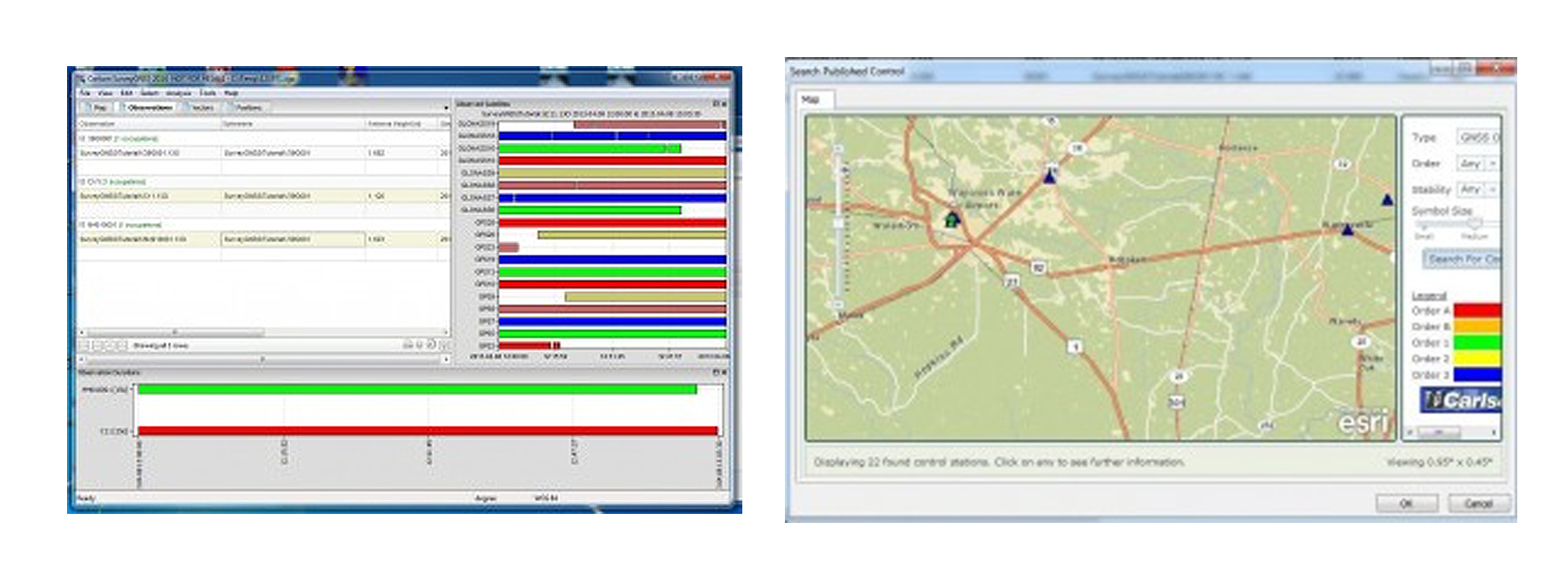

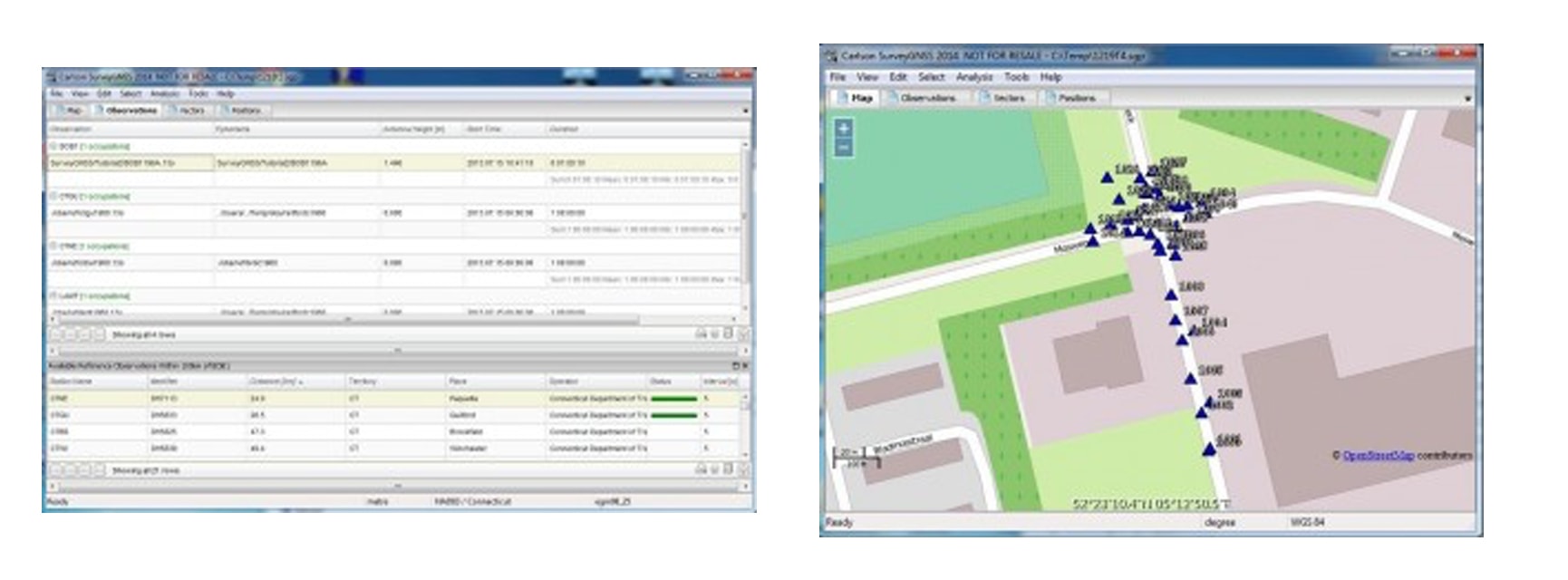

Screenshots




Videos

System Requirements

For Carlson’s CAD-Based Products

Note: Carlson products installed on top of the CAD products of IntelliCAD or AutoCAD, are subject to the same requirements as the CAD engine itself. Please follow the requirements for the CAD platform listed below and allow an additional 750 MB of hard-drive space for the Carlson application.

Carlson 2016-2018 with IntelliCAD 8.x

  • Compatible with 32 or 64 bit Windows Vista, 7, 8, 8.1, and 10
  • For hardware requirements, see Carlson 2013-2015* below

Carlson 2013-2015* with IntelliCAD 7.2

*Starting with 2013 build 130120

Intel® Pentium® 4 or comparable (minimum), Intel i7 or at least Intel i5 or comparable (recommended). Due to the variety of processors on the market, one can use cpubenchmark.net/cpu_list.php to do comparative analysis. While the overall processor score matters, the single thread performance is of the most interest.

  • 32-bit Windows 7-8.1: 1 gigabyte (GB) of RAM minimum for, 4 GB recommended.
  • 64-bit Windows 7-8.1: 2 GB of RAM minimum for, 8+ GB recommended.
  • Windows Vista: 1 GB of RAM minimum, 4 GB recommended.
  • Windows XP: 512 megabytes (MB) of RAM minimum, 2 GB recommended.

Graphics card compatible with OpenGL Version 1.4 or higher:

  • Recommended are desktop graphics level discrete (not integrated cards like Intel HD) graphics cards.
  • Preferably Nvidia Geforce due to their more consistent driver support.
  • Discrete ATI/AMD cards will be adequate, but ATI’s driver support has been spotty and user is frequently deferred to the computer manufacturer for support.
  • Professional Nvidia Quadro cards are not currently recommended due to driver issues.
  • Powerful gaming cards are not required and probably would not provide as much benefit as investment in more memory or better CPU

Carlson 2012 and earlier with IntelliCAD 7.1 and 6.x based products

  • Windows® XP, Windows® Vista, Windows® 7
  • Intel Pentium® or more powerful processor
  • 64-bit machines are supported, but application itself is 32-bit
  • 1 GB RAM (minimum), 4 GB recommended (for complex drawings)
  • 400 MB of free hard disk space (1.2 GB Total, see Note above)

AutoCAD®

Please visit the AutoCAD System Requirements page for current specifications which are subject to change without advance notice.

Please visit the Autodesk summary of the Operating system compatibility for AutoCAD (Autodesk Bulletin TS14078105) for historical references between AutoCAD and its supported operating system(s).

Please see Note above for hard disk space requirements for the Carlson application.

Embedded AutoCAD® OEM Engine

Carlson solutions based on AutoCAD 2018 Embedded

Takeoff R10 / Survey OEM 2018

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2018 products.

  • Microsoft Windows 10 (64-bit only); Microsoft Windows 8.1 with Update KB2919355 (32-bit & 64-bit); Microsoft® Windows® 7 SP1 (32-bit & 64-bit)
  • 4 GB RAM (minimum), 8 GB (recommended)
  • 2 GB free disk space for installation
  • 1360 x 768 (1920 x 1080 recommended) with True Color
  • Windows Internet Explorer® 11 or later
  • Install from download or DVD

Carlson solutions based on AutoCAD 2013 Embedded

Takeoff R6, R7, R8, R9 / Survey OEM 2013, 2014, 2015, 2016, 2017

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2013 products.

  • Windows® 8 and 10 Standard, Enterprise, or Professional edition (8 requires installation of AutoCAD LT 2013 Service Pack 2); Microsoft® Windows® 7 Enterprise, Ultimate, Professional, or Home Premium edition (SP3 or later) with an Intel® Pentium® 4 or AMD Athlon™ dual-core processor, 3.0 GHz or higher with SSE2 technology.
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 1.4 GB free disk space for installation
  • 1,024 x 768 VGA display with true color
  • Internet Explorer 7.0 or later
  • Install from download or DVD

Carlson solutions based on AutoCAD 2010 Embedded

Takeoff R4, R5 / Survey OEM 2010, 2011, 2012

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2010 products.

  • Microsoft Windows 7, or,
  • Windows Vista, SP1 or later (Enterprise, Business, Ultimate, Home Premium) operating system, with,
  • Intel Pentium 4 processor or AMD Athlon dual-core processor, 3.0 GHz or greater with SSE2 technology
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later
  • DVD drive

Or

  • Microsoft Windows XP Professional or Home Edition operating system (SP2 or later), with,
  • Intel Pentium 4 or AMD Athlon dual-core processor, 1.6 GHz or greater with SSE2 technology
  • 512 MB RAM
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later
  • DVD drive

Carlson solutions based on AutoCAD 2007 Embedded

Takeoff R2, R3 / Survey OEM 2007, 2008, 2009
  • Microsoft Windows 7, or,
  • Windows Vista, or,
  • Windows XP Home or Professional SP1 or better, or,
  • Windows XP for Tablet PC SP2, or,
  • Windows 2000 SP3 or better
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 512 MB RAM
  • 550 MB free disk space for installation
  • 1024 x 768 with True Color
  • Microsoft Internet Explorer 6.0 SP1 or higher
  • CD-ROM drive
  • Mouse, trackball, or compatible pointing device

Carlson solutions based on AutoCAD 2004 Embedded

Takeoff R1 / Survey OEM 2004, 2005, 2006
  • Microsoft Windows XP (Professional, Home Edition, or Tablet PC Edition), or,
  • Windows 2000, or Windows NT 4.0 (SP6a or later)
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 256 MB RAM
  • 300 MB free disk space for installation
  • 1024 x 768 VGA with true color (minimum)
  • Microsoft Internet Explorer 6.0
  • Mouse, trackball, or compatible pointing device
  • CD-ROM drive
