Carlson Point Cloud

$1,750.00$5,000.00

Carlson Point Cloud is a modular program that provides this powerful ability to go from field scan to finished plat, all with seamless integration to Carlson Survey, Carlson Civil and Carlson Mining. Carlson Point Cloud delivers a whole new level of powerful automation for large data sets.

***If you would like a multi seat license, please call 904-536-0470 for pricing.

See Available Discounts in Cart

Available Add-Ons:

Quantity:
SKU: N/A Category:

Description

Carlson Point Cloud is a modular program that provides this powerful ability to go from field scan to finished plat, all with seamless integration to Carlson Survey, Carlson Civil and Carlson Mining. Carlson Point Cloud delivers a whole new level of powerful automation for large data sets. It gives laser scanner users the ability to process millions of data points with Carlson Software ease-of-use.

Register your scan to local coordinates, filter or decimate the points, overlay raster images in 3D, snap to edges and code the descriptions for automated field-to finish processing of linework and symbols and create contours, profiles, sections, and breaklines. You will be able to read scan data from many instruments, view and process up to 1 billion points, and then perform the Field-to-Finish from the scanned data! This Carlson Software office products allows users to export surface models, points, contours, breaklines, grid and profiles to CAD.

All Carlson Software purchases will be delivered by email with your new serial number and download instructions within two business days.

Features

Data Extraction
  • 3D extraction of poles, trees, and hydrants
  • Extract data from clouds or meshes — TINs, Contours, Profiles, Sections and
  • Breaklines — and draw them in CAD design
Import / Export
  • Import/export of grids
  • Import/export point clouds containing up to 1 billion points
  • Import more cloud formats, including LAS, Leica, Faro (requires installation of conversion software), E57, DEM, GeoTiff, and more
  • Export to ASCII, LAS, or PDF (new in 2016)
Multiple Scan Consolidation
  • Register multiple scans into one cloud
  • Merge clouds (new in 2015)
Anomaly Reduction
  • Reduce anomalies with Clean Cloud and reduce density with Resample Cloud
Data Improvement Tools
  • Continue data improvement with Smooth Mesh and Simplify Mesh (this
    reduces the size of the model by removing least significant data points
Field-to-Finish
  • Use the full power of Carlson Field-to-Finish with Point Cloud data. You can use the same FLD files you use with GPS or conventional total stations with Symbols, Line Work and Labels all drawn in CAD
Viewing Cloud Data
  • Color Adjustment (new in 2015)
  • View multiple clouds at once
  • Color by Elevation or Intensity
  • Adjust point size and cloud detail
  • View as cross sections (new in 2017)
Draw Linework
  • Multiple snap modes to extract edges and slopes
Surface Data Commands
  • Load Surfaces — Import scan data from various sources
  • View Surface — 3D viewer for point cloud data
Scan Utilities
  • Resample and filter scan data
Breaklines
  • Automatic 3D breakline creation based on surface zones
Generate Profiles & Sections
  • Trace an alignment across the site and generate profiles or sections

New for 2022

2022 General Carlson Software Improvements

AutoCAD 2022Added support for this new version.
IntelliCAD 10.1Improved speed and new features like sheet sets with the Publish command.
ToolbarsAdded over 30 new toolbar icons and a new ribbon for GeoTech.
Open Drawings Map Added method for custom properties for drawing records and method to store a drawing database on a shared network location. From the Map view, added function to open Windows File Explorer for the drawing’s project folder.
Settings ServerAdded method to copy data files into project folders.
Project Data Sub-FoldersAdded separate Program Settings folder for settings files.
Data DepotAdded details to the history log and the ability to restore a previous version of a data file. Adding files to Data Depot supports working from project level with controls on which files to add.
Carlson ConfigureAdded setting to control font used for dialogs.
Select CAD Default SettingsNew command to choose classic or modern CAD user interface settings.
Drawing CleanupAdded functions to remove duplicate text and to remove unused registered apps.
Import Polyline FileAdded method for locating by station/offset values from the file.
Drawing Inspector For polylines, added reporting of current position distance. For centerline polylines, added reporting of spiral data.
Draw MText In many commands that create MText, added an option to set the Text Frame to draw a box around the text.
Translate LayersAdded method to import layer names from the drawing.
Line Up Text Added method to pick two points to define angle, option to respace and option to use text for alignment reference.
Arrowhead with LineNew command to draw a two point leader with an arrowhead.
Boundary PolylineAdded option to create 3D polyline.
Shrink-Wrap Entities Added options to ignore zero elevation entities for input, to elevate zero elevation vertices, and to erase the input entities.
Add Intersection PointsAdded option to average elevations at intersection within a tolerance.
Draw Label For Companion LineworkNew command for Draw To Standard to create a label using properties by layer.
Draw Standard Item by Quick KeyNew command to create entities for Draw To Standard by typing a quick key instead of dialog list selection.
Reports For PDF reports, added option to make PDF report files read-only. For Report Formatter, new option to put text lines at the bottom of the report and added function to sort the list of available fields.
3D ViewerAdded zoom extents function.
Angle InfoAdded ability to handle 3D angles.
Layer IDAdded option to label the layer name.
Command SearchAdded reporting of toolbars for the commands.

2022 Improvements - Point Cloud

ImportAdded function to import cloud data from CAD points.
ExportAdded support for E57 format and RCS format.
Bare EarthAdded option to put the ground points into a region instead of creating a new cloud. Added method to create a cloud of the non-ground points.
Create PolylineAdded method to create polylines with tangential arcs.
Edit PolylineAdded function to zoom scene to current polyline in editor dialog.
Extract SlicesNew function to view cross sections of cloud data and create points and polylines.
Curb BreaklinesNew method to create 3D polylines for top and bottom of curb by using edge clusters.
Create Breaklines By SlopeNew function to create 3D polylines at the boundaries of slope zones.
Color LinesAdded new method for creating polylines that follow color lines in the cloud such as roadway paint stripes and new method to follow color boundaries such as edge between pavement and grass.
Slope LinesNew function to create breakline polylines by following a slope grade break.
Feature ExtractionAdded batch process method to extract multiple features at a time.
Power LinesNew function to extract overhead wires as polylines.

Comparison

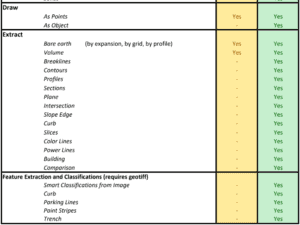

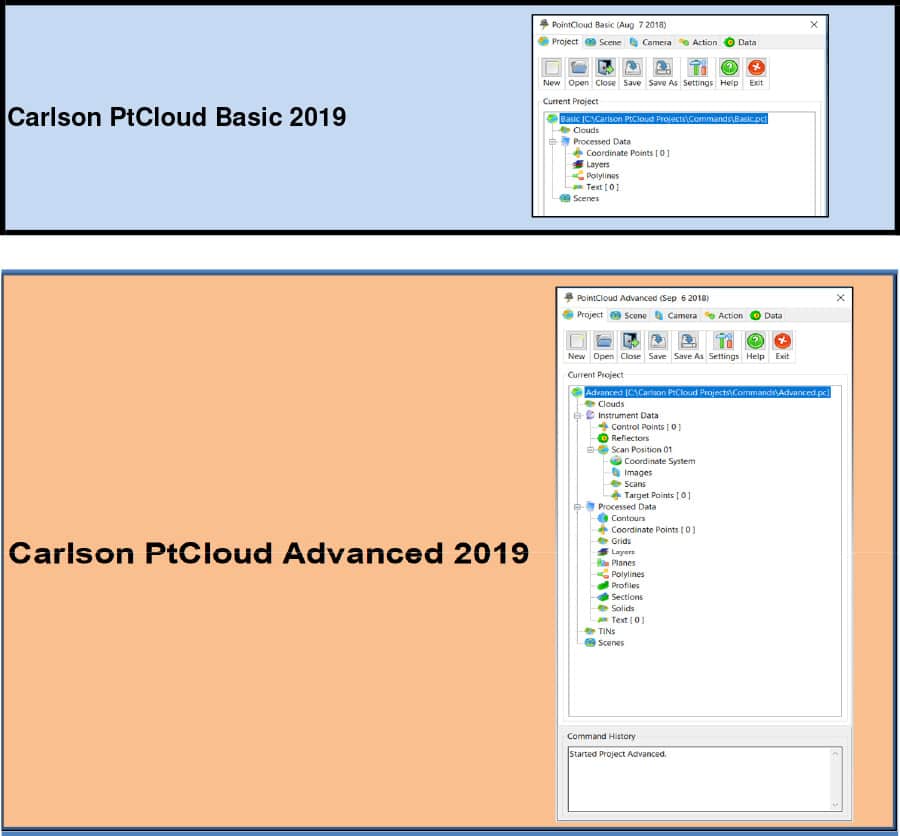

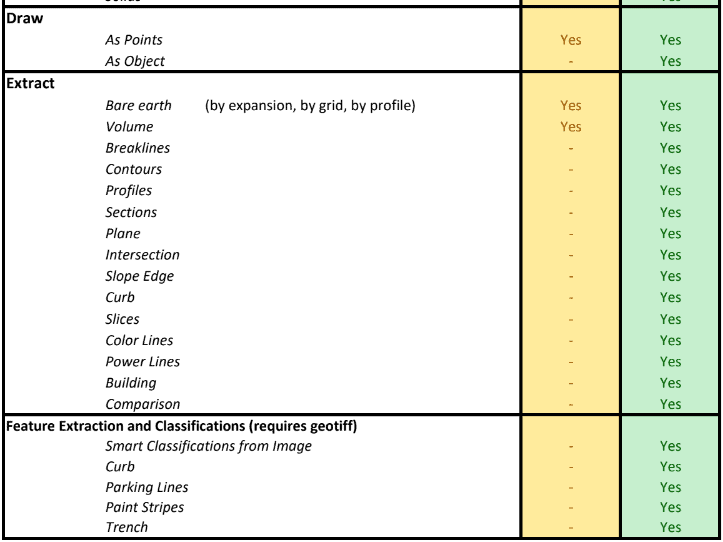

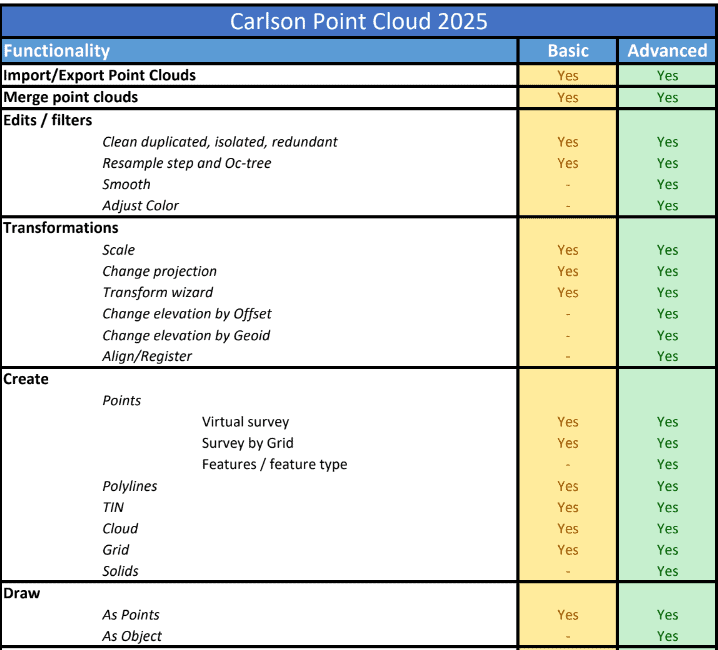

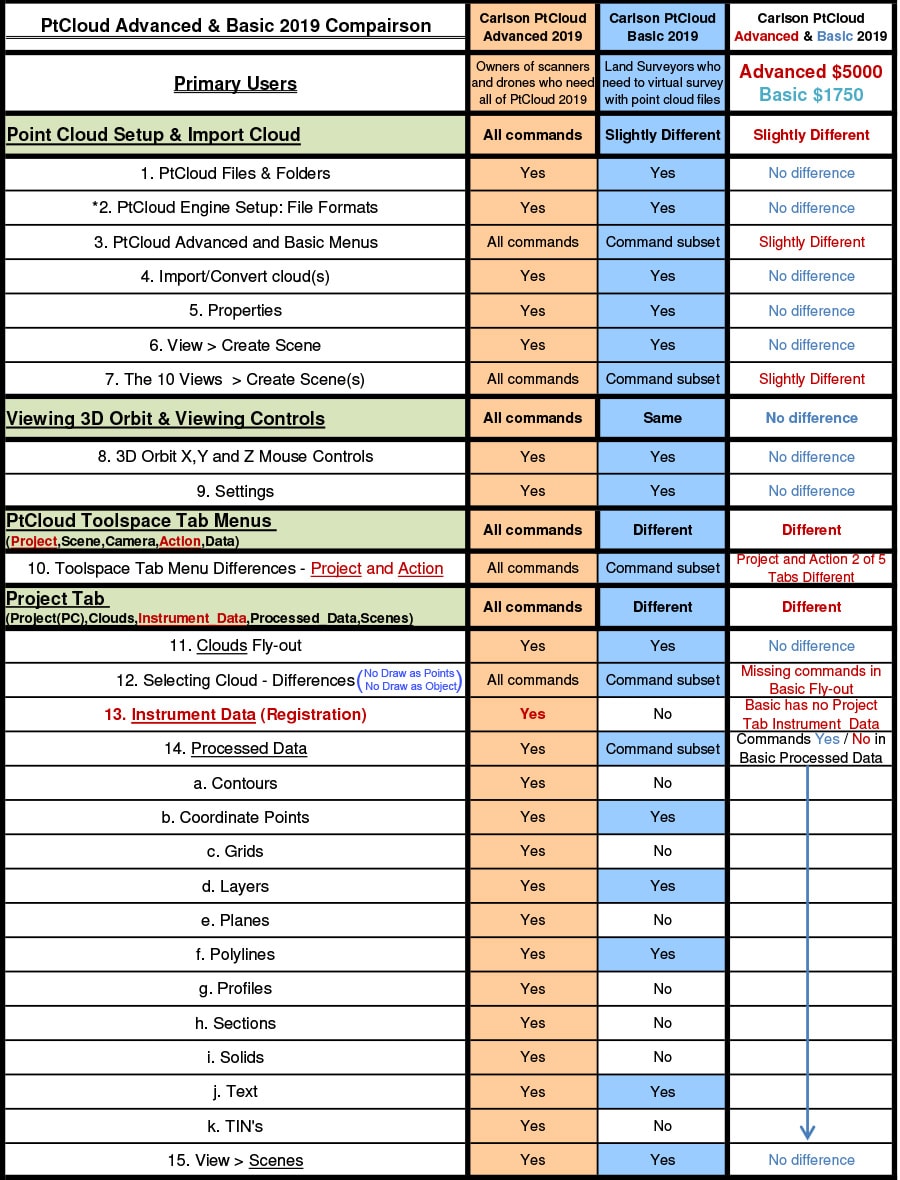

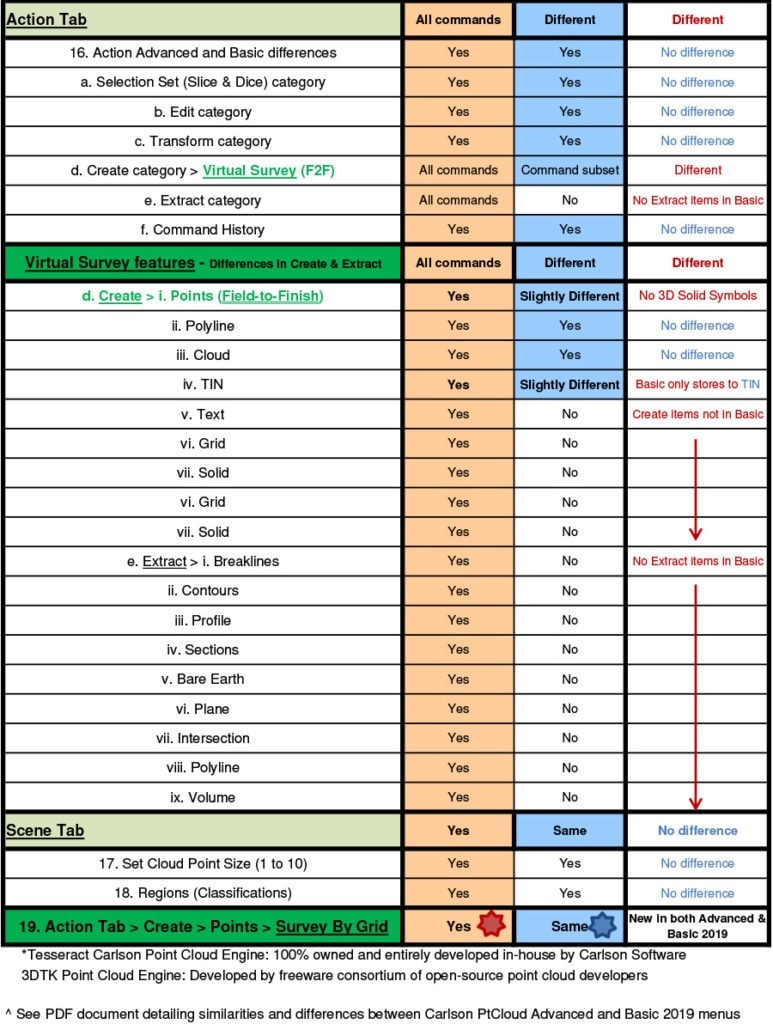

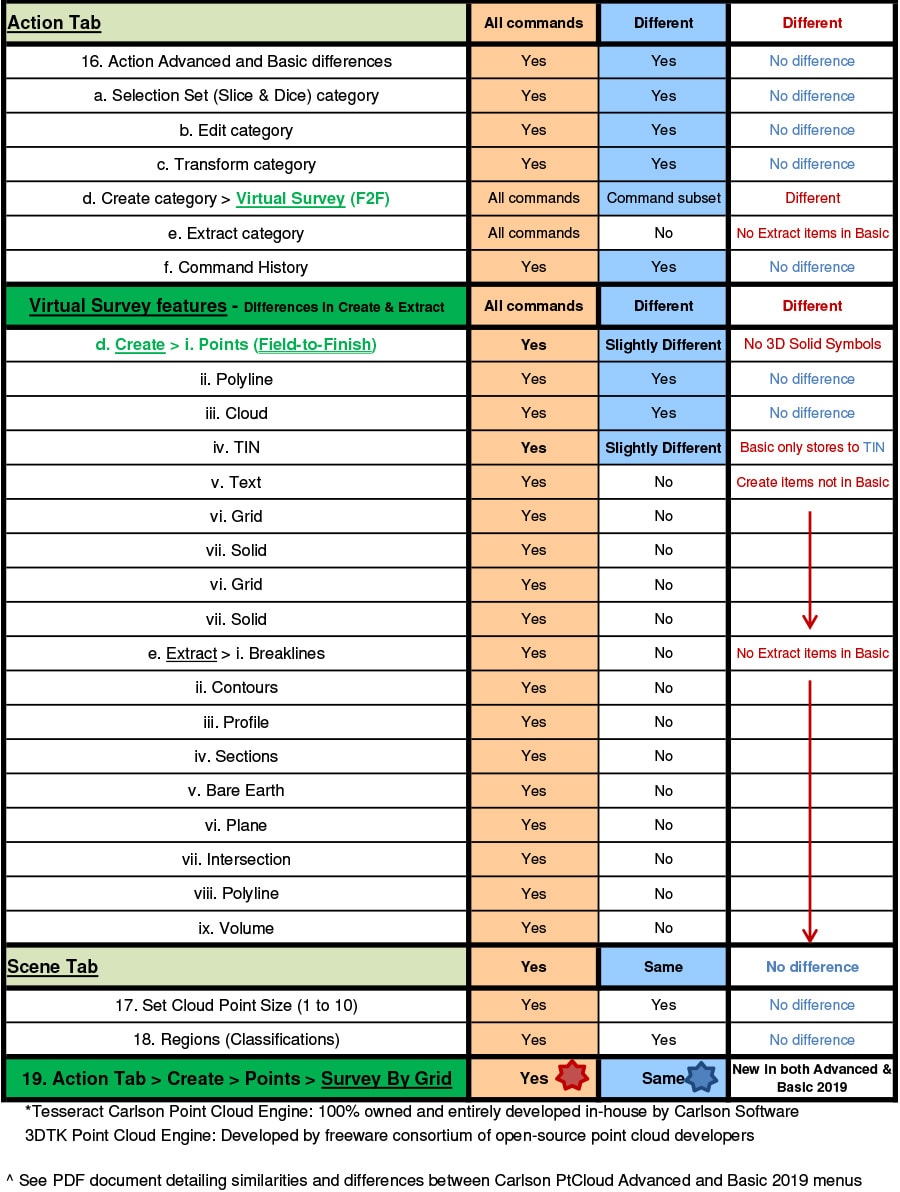

Click below for a feature comparison between Point Cloud Basic and Advanced  (Download PDF Here)

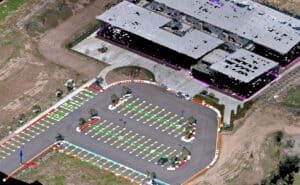

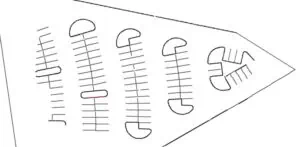

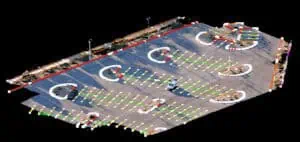

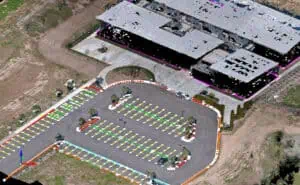

Screenshots
