Carlson CADnet Software

Carlson CADNet

$1,750.00

Carlson CADNet can be purchased as a standalone module or as part of the Takeoff Suite which also includes Construction, GeoTech and Trench. It can run standalone with the included license of IntelliCAD or on top of a separately purchased license of full AutoCAD.

See Available Discounts in Cart

Options:

Quantity:
Category:

Description

Carlson CADNet can be purchased as a standalone module or as part of the Survey Suite or  Takeoff Suite which also includes Construction, GeoTech and Trench. It can run standalone with the included license of IntelliCAD or on top of a separately purchased license of full AutoCAD.

Carlson CADNet and other programs of the Takeoff Suite includes features that are most comparable to construction estimating software such as Paydirt, Quest and Agtek. However, the program also contains much of the same general functionality of the civil design components of programs such as: DCA/Softdesk/Land Desktop, AutoCAD Map, Civil 3d, Raster Design, Eagle Point, TerraModel, GeoPak and InRoads.

All Carlson Software purchases will be delivered by email with your new serial number and download instructions within two business days.

Features

Key Capabilities
  • Import PDF Files
  • Import BIM using IFC Files
  • Export Carlson surface to BIM using IFC Files
  • Convert Raster images to vector CAD entities
  • Modify Raster images using cut, copy, remove speckles and thicken commands
  • Create CAD entities from the raster image using Trace functions and raster snaps
  • Create text entities extracted from the raster images
  • Digitize from paper plans or on-screen images
  • Full set of digitize routines for points, polylines, areas, contours, profiles, sections and end-areas
General
  • Built on AutoCAD and IntelliCAD — Carlson Survey will run in AutoCAD® as well as AutoCAD® Map, Land Desktop and Civil3D and also on IntelliCAD.
  • Project Setup — Flexible data storage methods
  • Drawing Cleanup — Fix common drafting errors
  • Drafting Enchancements — Handy tools for working in AutoCAD® such as Join Nearest, Shrinkwrap Entities, Polyline Utilities, Drawing Inspector, Layer Inspector and Twist Screen
  • Data Compatibility — Supports industry standard LandXML and scores of specific data conversions
POINTS
  • Import/Export — User-defined import and export of point data along with conversions with specific other formats
  • Draw Points — Draw points with settings for symbols, layers and styles
  • Point Groups — Point group manager to define sets of point by filters
  • Coordinate File History —Tracks all changes to points with report and undo functions
  • Fix Point Label Overlaps —Finds point label overlaps with rule options to fix automatically
  • Point Tools —Utilities for modify point labels such as move with leader, twist and resize

Videos

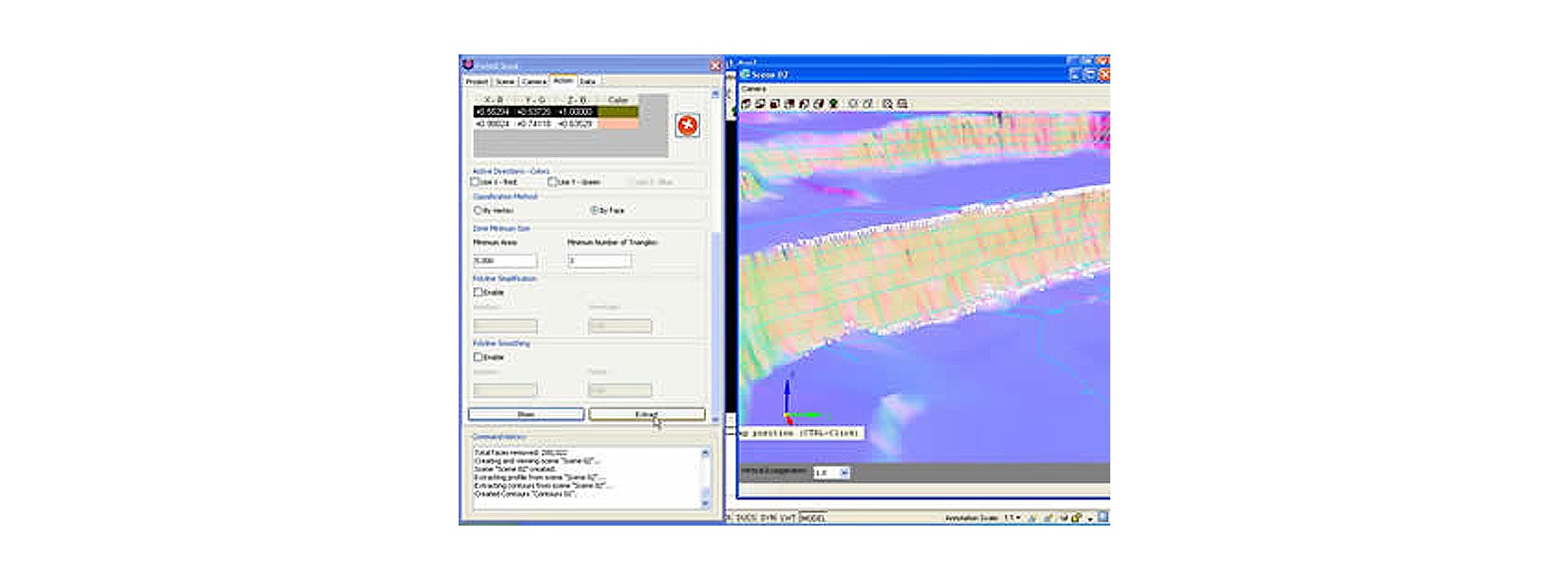

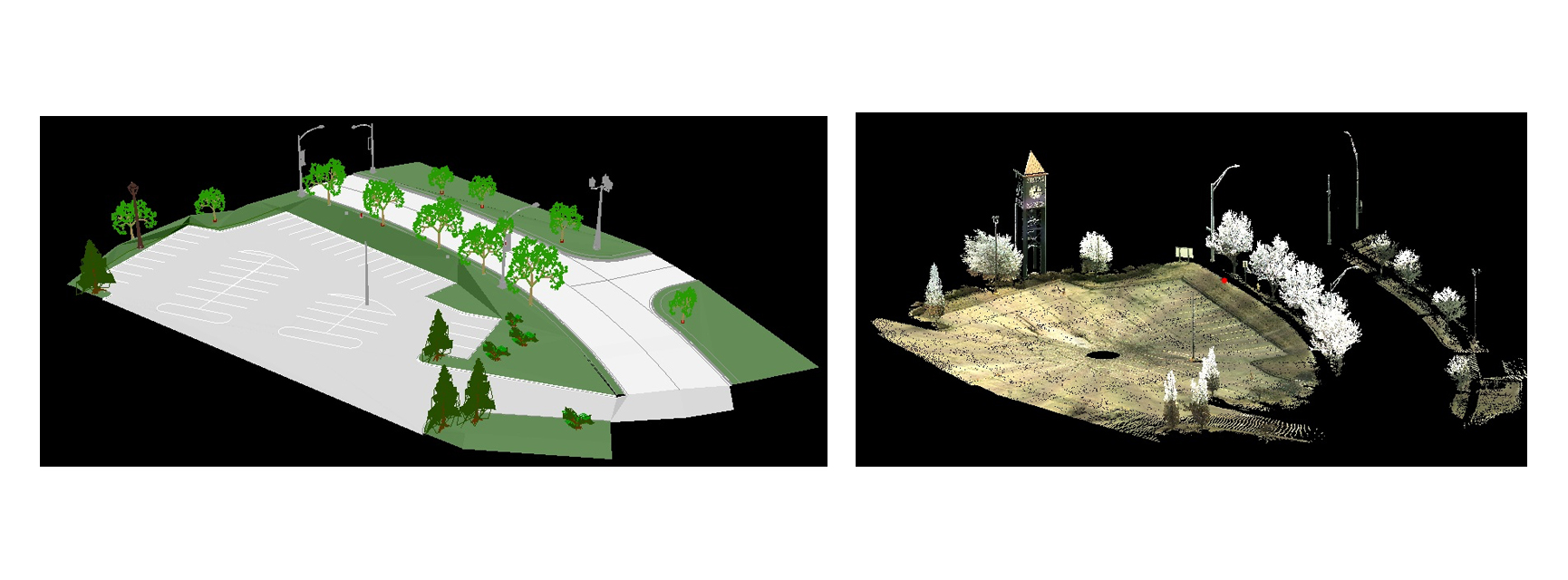

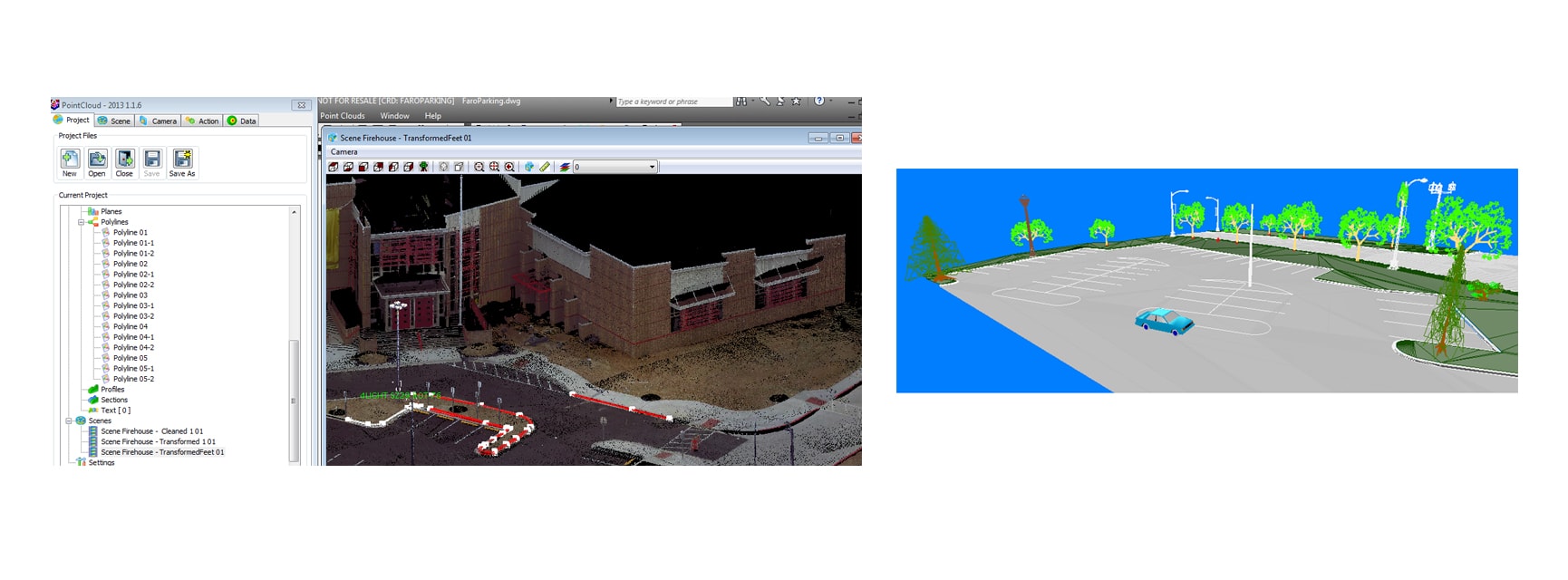

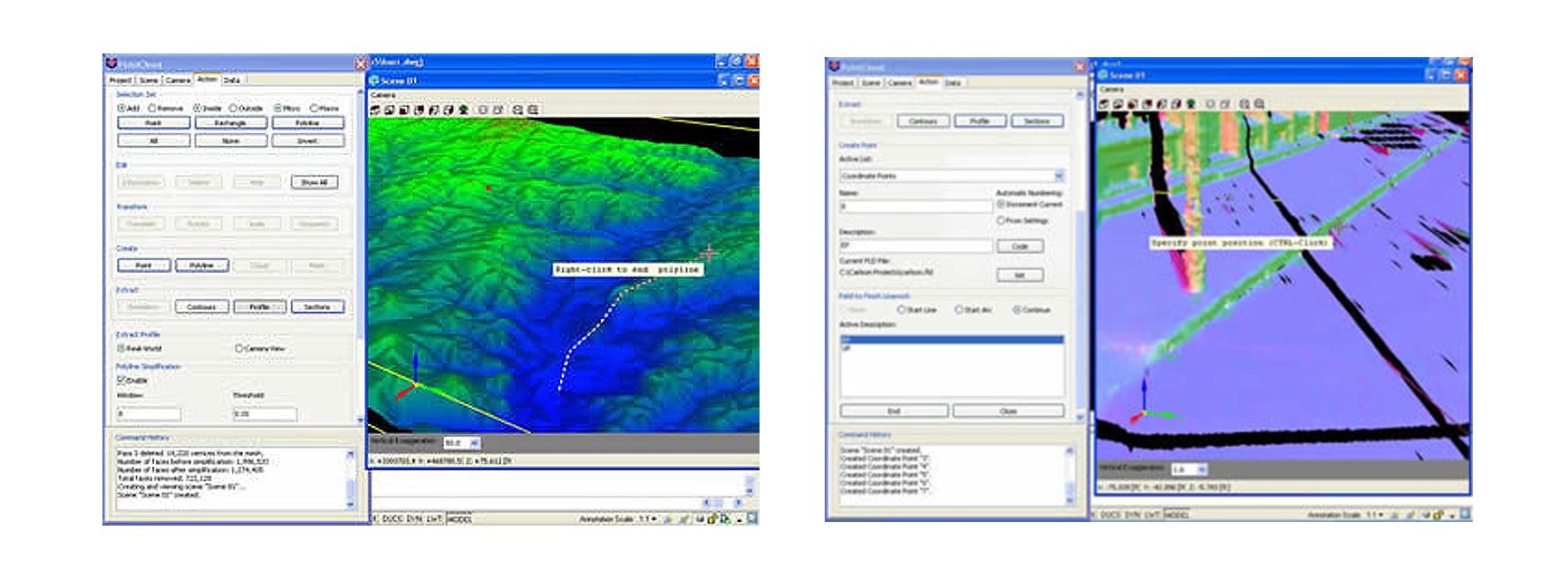

Screenshots




System Requirements

FOR CARLSON’S CAD-BASED PRODUCTS

Carlson products installed on top of the CAD products of IntelliCAD or AutoCAD, are subject to the same requirements as the CAD engine itself. Please follow the requirements for the CAD platform listed below and allow an additional 750 MB of hard-drive space for the Carlson application.

View SurvPC system requirements here

INTELLICAD

CARLSON 2020-2025 WITH INTELLICAD 9.X, 10.X, 11.X OR 12.X

  • Compatible with 64 bit Windows 7, 8, 8.1, 10, 11 (Vista and 32 bit are not supported)

CARLSON 2016-2019 WITH INTELLICAD 8.X

  • Compatible with 32 or 64 bit Windows Vista, 7, 8, 8.1, and 10

HARDWARE REQUIREMENTS

Intel® Pentium® 4 or comparable (minimum), Intel i7 or at least Intel i5 or comparable (recommended). Due to the variety of processors on the market, one can use cpubenchmark.net/cpu_list.php to do comparative analysis. While the overall processor score matters, the single thread performance is of the most interest.

  • 32-bit Windows 7-8.1: 1 gigabyte (GB) of RAM minimum, 4 GB recommended.
  • 64-bit Windows 7-10: 2 GB of RAM minimum, 8+ GB recommended.
  • Windows Vista: 1 GB of RAM minimum, 4 GB recommended.
  • Windows XP: 512 megabytes (MB) of RAM minimum, 2 GB recommended.

Graphics card compatible with OpenGL Version 1.4 or higher:

  • Recommended are desktop graphics level discrete (not integrated cards like Intel HD) graphics cards.
  • Preferably Nvidia Geforce due to their more consistent driver support.
  • Discrete ATI/AMD cards will be adequate, but ATI’s driver support has been spotty and user is frequently deferred to the computer manufacturer for support.
  • Professional Nvidia Quadro cards are not currently recommended due to driver issues.
  • Powerful gaming cards are not required and probably would not provide as much benefit as investment in more memory or better CPU

Learn more information about IntelliCAD.

EMBEDDED AUTOCAD® OEM ENGINE

CARLSON SOLUTIONS BASED ON AUTOCAD 2018 OR 2022 EMBEDDED

TAKEOFF R10, R11, R12 / SURVEY OEM 2018-2024

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2018 products.

  • Microsoft Windows 10 (64-bit only); Microsoft Windows 8.1 with Update KB2919355 (32-bit & 64-bit); Microsoft® Windows® 7 SP1 (32-bit & 64-bit)
  • 4 GB RAM (minimum), 8 GB (recommended)
  • 2 GB free disk space for installation
  • 1360 x 768 (1920 x 1080 recommended) with True Color
  • Windows Internet Explorer® 11 or later
  • Install from download

CARLSON SOLUTIONS BASED ON AUTOCAD 2013 EMBEDDED

TAKEOFF R6, R7, R8, R9 / SURVEY OEM 2013, 2014, 2015, 2016, 2017

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2013 products.

  • Windows® 8 and 10 Standard, Enterprise, or Professional edition (8 requires installation of AutoCAD LT 2013 Service Pack 2); Microsoft® Windows® 7 Enterprise, Ultimate, Professional, or Home Premium edition (SP3 or later) with an Intel® Pentium® 4 or AMD Athlon™ dual-core processor, 3.0 GHz or higher with SSE2 technology.
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 1.4 GB free disk space for installation
  • 1,024 x 768 VGA display with true color
  • Internet Explorer 7.0 or later
  • Install from download

CARLSON SOLUTIONS BASED ON AUTOCAD 2010 EMBEDDED

TAKEOFF R4, R5 / SURVEY OEM 2010, 2011, 2012

Please note the CPU compatibility below: older AMD CPUs like Athlon XP+ do not support SSE2 technology and can not run Embedded AutoCAD 2010 products.

  • Microsoft Windows 7, or,
  • Windows Vista, SP1 or later (Enterprise, Business, Ultimate, Home Premium) operating system, with,
  • Intel Pentium 4 processor or AMD Athlon dual-core processor, 3.0 GHz or greater with SSE2 technology
  • 1 GB RAM (minimum), 8 GB (recommended)
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later

Or

  • Microsoft Windows XP Professional or Home Edition operating system (SP2 or later), with,
  • Intel Pentium 4 or AMD Athlon dual-core processor, 1.6 GHz or greater with SSE2 technology
  • 512 MB RAM
  • 850 MB free disk space for installation
  • 1024 x 768 VGA display with true color
  • Microsoft Internet Explorer 7.0 web browser or later

CARLSON SOLUTIONS BASED ON AUTOCAD 2007 EMBEDDED

TAKEOFF R2, R3 / SURVEY OEM 2007, 2008, 2009
  • Microsoft Windows 7, or,
  • Windows Vista, or,
  • Windows XP Home or Professional SP1 or better, or,
  • Windows XP for Tablet PC SP2, or,
  • Windows 2000 SP3 or better
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 512 MB RAM
  • 550 MB free disk space for installation
  • 1024 x 768 with True Color
  • Microsoft Internet Explorer 6.0 SP1 or higher
  • Mouse, trackball, or compatible pointing device

CARLSON SOLUTIONS BASED ON AUTOCAD 2004 EMBEDDED

TAKEOFF R1 / SURVEY OEM 2004, 2005, 2006
  • Microsoft Windows XP (Professional, Home Edition, or Tablet PC Edition), or,
  • Windows 2000, or Windows NT 4.0 (SP6a or later)
  • Pentium III 800 minimum, Intel Pentium IV recommended
  • 256 MB RAM
  • 300 MB free disk space for installation
  • 1024 x 768 VGA with true color (minimum)
  • Microsoft Internet Explorer 6.0
  • Mouse, trackball, or compatible pointing device

AUTOCAD®

Please visit the AutoCAD System Requirements page for current specifications which are subject to change without advance notice. Please visit the Autodesk summary of the Operating system compatibility for AutoCAD (Autodesk Bulletin TS14078105) for historical references between AutoCAD and its supported operating system(s).

Please see contents above for hard disk space requirements for the Carlson application.

PHOTOCAPTURE STANDALONE

Hardware Minimum Recommended
CPU Intel I9 / AMD Ryzen 7 Intel I9 14 gen / AMD Ryzen 9
CPU Cores 8 / 8 24 / 16
CPU Threads 16 / 16 32 / 32
RAM 32 GB 64 GB or more
SSD MVMe 1 TB free 2 TB or more free
Graphics Card Nvidia GeForce* Nvidia GeForce*

* PhotoCapture does not use the GPU but note that Nvidia GeForce series cards are recommended for other Carlson Software products.
